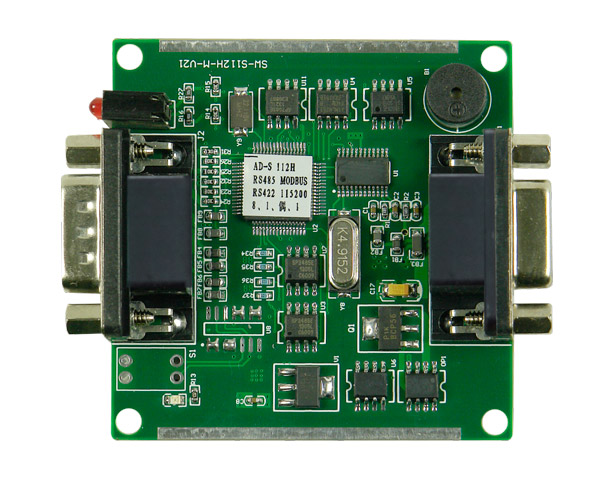

AD-S112H Modules

AD-S112H Modules

AD-S112H Modules

    Applicable to weighing-in-motion(WIM) with high precision demand, for example, belt weigher, automatic catchweighing instrument, vehicle weighing on highway, etc.

    Features and Specifications:

 ★   Up to 2,000,000 counts of A/D resolution

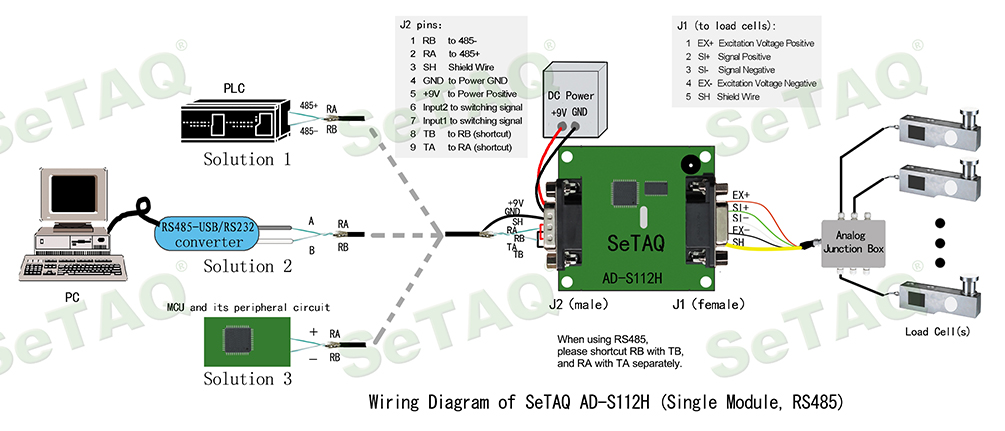

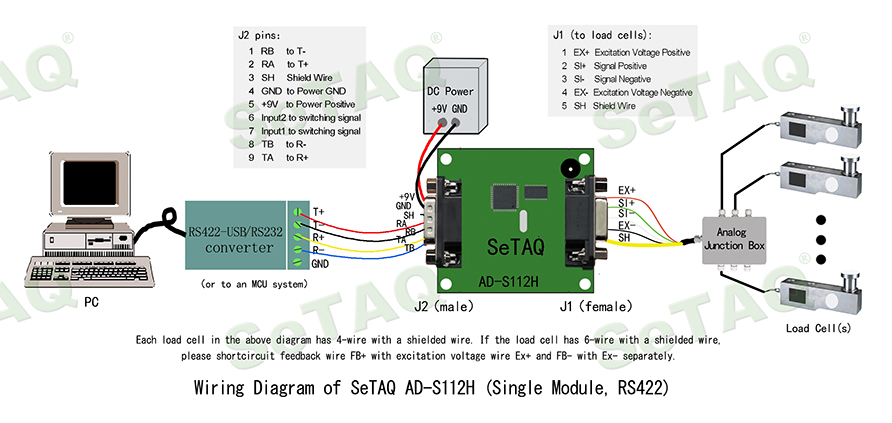

 ★  HardwareInterface: RS-422 / RS-485 interface (opt.)

 ★  Software Protocol:  Freeport / Modbus RTU protocol (opt.)

 ★  Highest sampling speed: 400Hz

 ★  Measuring range: ±15mV

 ★   Temperature coefficient:≤5ppm/℃(typical)

 ★  Dimensions(mm):Rectangle:60×60×15

 ★  A/D conversion,digital calibration, tare, zero setting/tracking, switch-on zero setting,anti-dithering;

 ★  All the parameters can be set through serialinterface;

 ★  Module addresses are availablefrom 0 to 31. Modules can work through bus communication;

 ★  Baud rate,parity bit and data output format can be set. 1200~115200bps;

 ★  Digital filtering: standard filtering or LPF;

 ★  Storage ofthe parameters with protection against power failure;

 ★  Aluminum alloy enclosure

 ★  Two switch signal inputs(opt.)

 ★  OperatingVoltage: 9V DC(6.5V~12V); Operating Current:≤40mA;

 ★  Complete protection: wrong wiring protection, overvoltage protection, transient voltage suppression;

 ★  Operating temperature range: -40℃~+70℃; Storage temperature range: -60℃~+90℃


AD-S112H高速高精度模数转换模块
